Solar Botanicalls Sensor and Battery Boost

Full Botanicalls circuit with solar sensor battery boost

Kate Hartman and I are working on augmenting Botanicalls with a solar panel that will act as both a light sensor and a battery charger for each plant in the project. The full circuit schematic is above with a detail showing the solar charge and sensor connections below. We’re planning to try a 3 Volt rechargeable battery with a low-drop voltage regulator for our power supply. Click on each of the images for a full-size graphic.

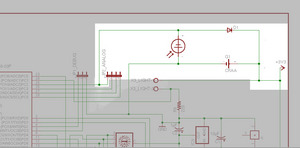

Detail of solar sensing and battery boost sub-circuit

The next project steps will be to build the sub-circuit on a test breadboard, to see how well different panels are able to charge various batteries while sensing light values using the Arduino microcontroller.
